High-Precision Feeding: In response to the demands of advanced technology, a computer-controlled closed-loop feedback system ensures positioning accuracy within ±0.03 mm.

Multi-Stage Feeding Capability (Optional): The system can store up to 20 different feed lengths, with each length supporting up to 999 press strokes, meeting the production needs of specialized components.

Customizable Manual Mode: Operators can set three different manual speeds for easier operation, allowing precise positioning of material into the die.

High-Efficiency Release Device: The release timing can be quickly set by synchronizing with the press cam signal and making a simple material thickness adjustment.

Feed Length Setting: The desired feed distance is achieved by directly entering the value on the control panel.

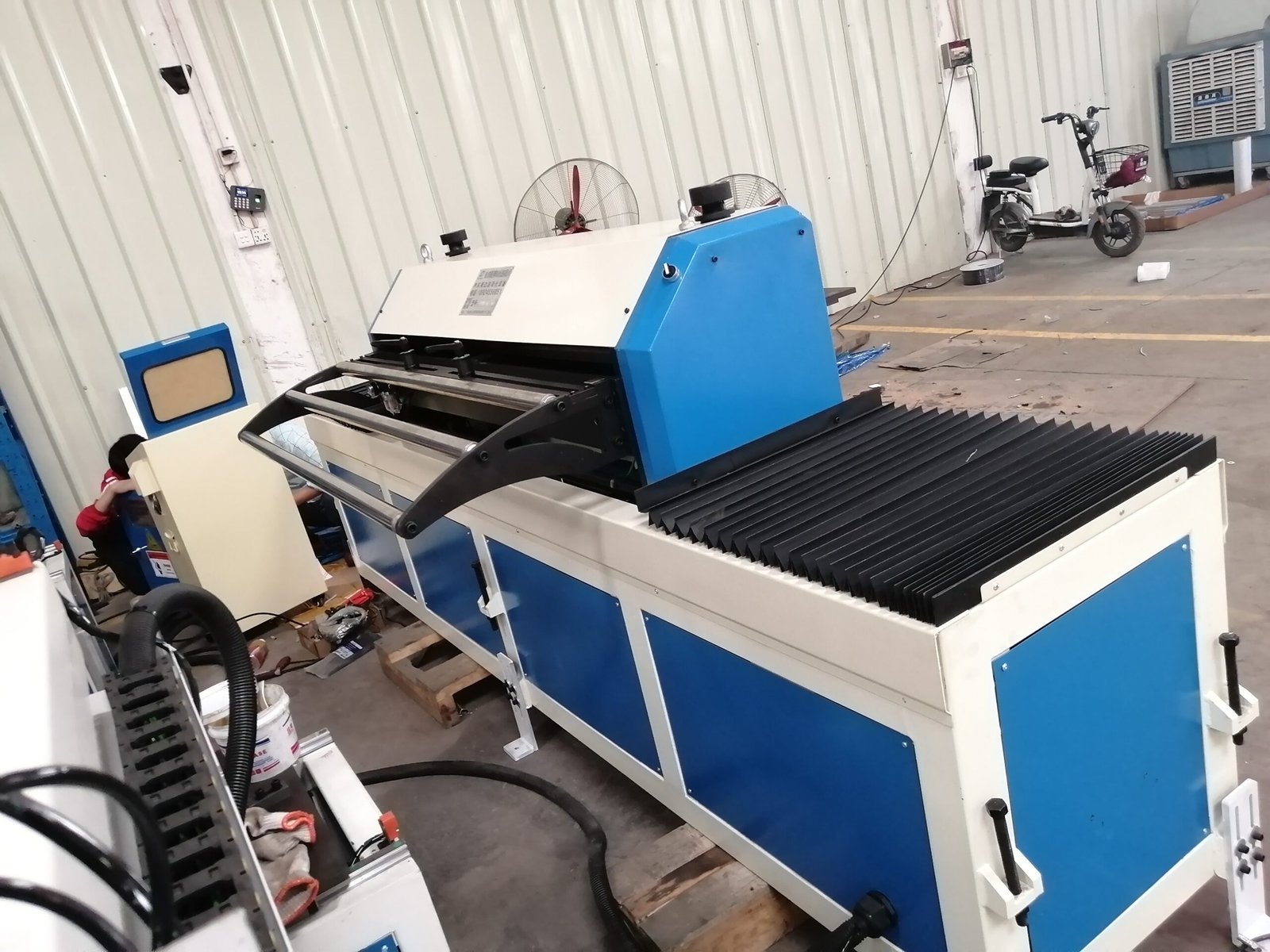

Feeding Mechanism: The rollers employ a hollow design, making them lightweight with low rotational inertia. The surface is hard chrome-plated to HRC 60°, ensuring excellent wear resistance and long service life.
